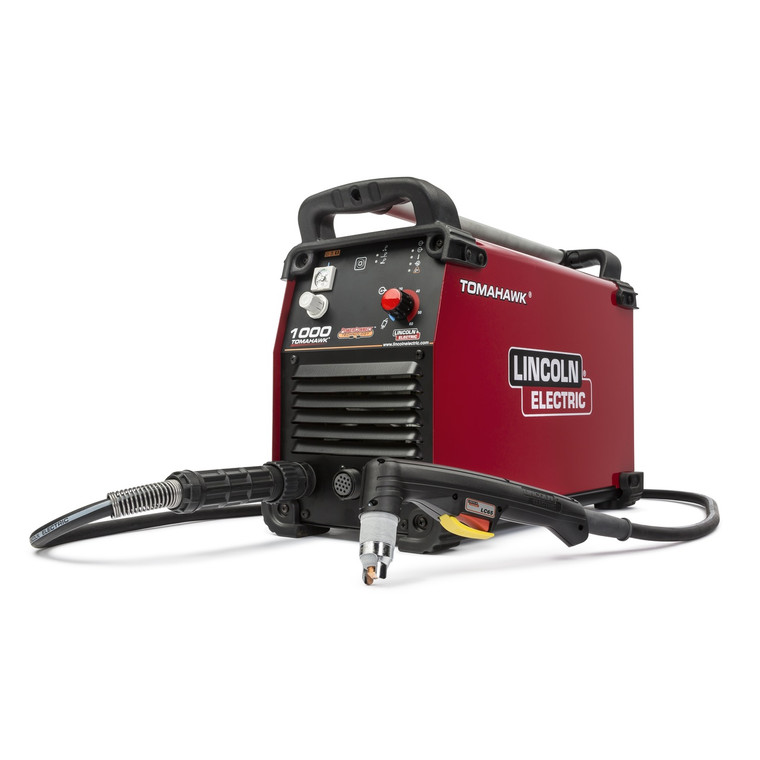

Lincoln Tomahawk 1000 Handheld Plasma Cutter K2808-1

SKU:
K2808-1
|
$2,580.87
$3,089.00
(You save $508.13 )
Current Stock:
Adding to cart… The item has been added

Lincoln Tomahawk 1000 Plasma Cutter K2808-1

Top Features

  • PowerConnect Technology Automatically senses and adjusts to input power.
  • Continuous Output Control Focus the arc for different material thicknesses.
  • Touch Start System Reliable plasma arc initiation without high frequency.
  • Front Panel Purge Control Makes it easy to set the air flow rate without initiating the plasma arc.
  • Cool Operation, Long Consumable Life- New electrode and nozzle design save you money in the long run.

Input Power

208-575/1/3/50/60

Processes

Plasma cutting for mild steel, stainless steel, aluminum, brass, copper

Plasma Cutting - Anywhere, Anytime

The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air, grab the torch and start cutting.

  • PowerConnect Technology Automatically senses and adjusts to input power for a range of 200 up to 600 volts, single or three phase, 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.
  • Continuous Output Control Focus the arc for different material thicknesses.
  • Touch Start System Reliable plasma arc initiation without high frequency.
  • Front Panel Purge Control Makes it easy to set the air flow rate without initiating the plasma arc.
  • Cool Operation, Long Consumable Life- New electrode and nozzle design save you money in the long run
  • Added Safety Our Parts-in-Place system detects correct installation of consumables and torch.
  • Engine Drive Compatible Select a Lincoln Electric Ranger or Vantage to power your Tomahawk in remote locations.

What's Included

  • LC65 hand torch
  • 25 ft. (7.5 m) cable
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables
  • Input power cord

Lincoln Tomahawk 1000 Handheld Plasma Cutter K2808-1



Lincoln Tomahawk 1000 Handheld Plasma Cutter K2808-1



1. Mode Pushbutton
2. Air Pressure Gauge
3. Regulator Adjustment
4. Torch Connection
5. CNC Connector - for automation integration
6. Work Lead Connection
7. Output Current and Air Purge Control
8. Parts-in-Place (PIP) LED Indicator (Yellow)
9. Gas Pressure LED Indicator (Yellow)
10. Thermal Status LED Indicator (Yellow)
11. Output Status LED Indicator (Red)
12. Power On/Off LED Indicator (Green)
13. Gouge Mode for removing material (Red)
14. Expanded Metal Mode for cutting on grid work (Red)
15. Cut Mode LED Indicator - for solid piece (Red)
16. On/Off Power Switch
17. Input Cable
18. Cooling Fan
19. Air Inlet For External Compressed Air



Input Power
  • 208-575/1/3/50/60
Rated Output
  • 40A@96V 100%
  • 60A@104V 50%
Input Current
  • 37.8A
Output Range
  • 20-60A

Dimensions (H x W x D) 15.2 in x 8.5 in x 22.1 in (385 mm x 215 mm x 561 mm)
Net Weight 70.00 (31.75 kg)

PILOT CURRENT 20A
AIR PRESSURE REQUIRED: 87 - 109 psi
(6.0 - 7.5 Bar)
AIR FLOW RATE 80 psi @ 275 SCFH
5.5 Bar @ 130 ±20% Liters / min.
