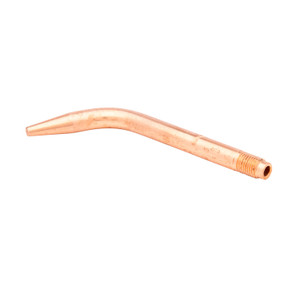

Harris 5090 Welding & Brazing Tip Size 3 1601730

SKU:
1601730
|
$24.00
Current Stock:
Adding to cart… The item has been added

Model 5090 is a one-piece acetylene tip for welding/brazing torches. This tip is manufactured using environmentally-friendly tellurium copper that has excellent machining properties resulting in a higher quality tip. It is precision drilled and swaged for more precise and consistent flames. Model 5090 uses a universal mixer for sizes 0-10 eliminating the expense of using a different mixer for every tip size. The tip has a metal-to-metal contact seat virtually eliminating the possibility of leaks and the need for thread sealants.

Features

  • Constructed of tellurium copper
  • Metal-to-metal seat virtually eliminates leaks
  • Precision drilled and swaged for more precise and consistent flames
  • Uses Harris universal mixer sizes 0-10
  • Typical applications include maintenance, metal art production, brazing, etc.
  • Engraved with tip size for easy identification
  • One year manufacturer's warranty

General Equipment

Compatible Handle Model Number 19-6
50-9
15-5
Compatible Mixer Model Number H-16-E
B-15-3
Gas / Gas Service Acetylene
Mixer Type E"" Equal or positive pressure

Brazing Cutting Heating and Welding Tips

Acetylene SCFH (Min. - Max.) 5 - 11
Equal Pressure - Acetylene PSIG 3
Equal Pressure - Fuel Gas PSIG 3
Equal Pressure - Oxygen PSIG 3
Material Thickness 1/16"" (1.6mm)
Recommended Hose 3⁄16
Tip Size / Number 3
Tip Thread Size 5⁄16" - 27

Warranty

Warranty 1 Year
