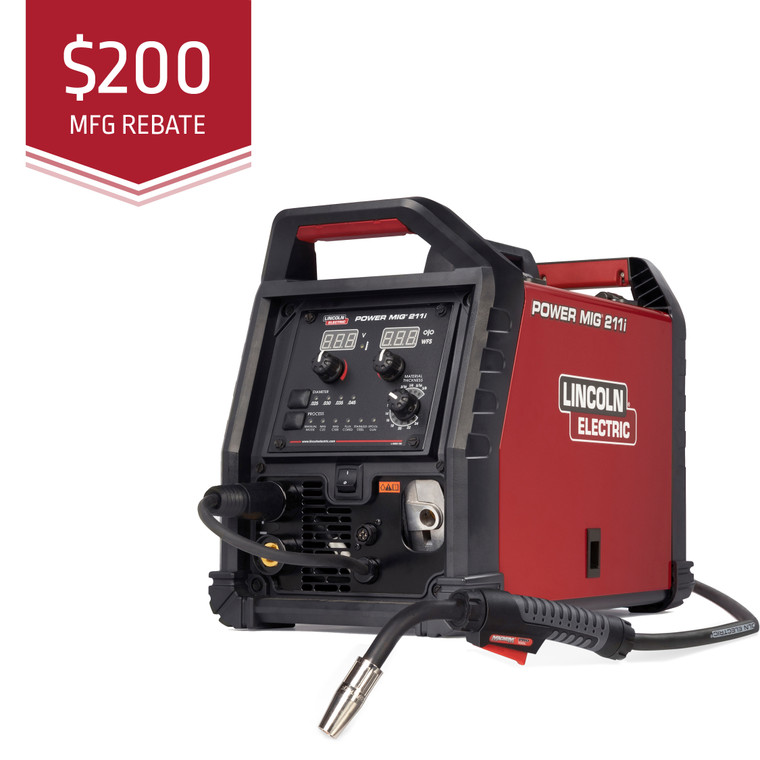

Lincoln Power MIG 211i MIG Welder - K6080-1

Lincoln Electric
SKU:
K6080-1
$1,299.00
Current Stock:
Adding to cart… The item has been added

LIMITED-TIME OFFER!
Buy a POWER MIG® 211 MPi™ Multi-Process Welder and receive a $100 VISA gift card rebate.
View other Season of Savings Rebates
Redeem Rebate

SOLID, DEPENDABLE WELDING

The POWER MIG® 211i MIG welder is a straightforward and dependable machine that’s ideal for MIG and flux-cored welding. This reliable diehard is your best friend on the farm, in the small shop, or for maintenance and repair work. The seven-segment display with basic knob controls and a simple three-step setup process gets you welding quickly – and when it’s time to move, the sleek case with multiple lift points make it extremely portable. If you’re looking for an incredibly simple, reliable MIG welder that won’t break the bank, the POWER MIG 211i MIG welder is ready to go to work for you.

KEY FEATURES

  • Simple User Interface – Seven-segment display with basic knob controls.
  • Process Capabilities - MIG, Flux-Cored and Spool Gun.
  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
  • Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
  • Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience.
  • Lightweight and Portable - Only 41 lbs.

MAGNUM® PRO 100L WELDING GUN

The over-molded handle design offers key benefits to the operator:

  • Increased Comfort
  • Enhanced Grip
  • Reduced Hand Fatigue
  • Improved Control

Processes

MIG, Flux-Cored

Applications

Metal Fabrication, Maintenance and Repair, Autobody/Farm, Light Industrial

Product Number

K6080-1 - POWER MIG 211i

WHAT’S INCLUDED

  • Magnum® PRO 100L Gun, 10 ft (3.0 m)
  • 120V to 230V Power Cord Adapter
  • Work Cable and Clamp
  • Adjustable Gas Regulator and Hose
  • Gun Cable Liner (pre-installed in gun)
  • Spindle Adapter
  • Sample 2 lb (0.45 kg) 0.030 in (0.8 mm) Spool of SuperArc® L-56® Mild Steel MIG Wire
  • 0.030 in (0.8mm) Contact Tip (Installed)
  • 0.030 - 0.035 in (0.8 - 0.9 mm) Drive Roll (Installed)
  • 0.025 - 0.035 in (0.6 - 0.9 mm) Wire Guide (Installed)

RECOMMENDED ACCESSORIES

  • K520 - Utility Cart
  • K2377-1- Small Canvas Cover
  • K3269-1- Magnum® PRO 100SG Spool Gun

SPECIFICATIONS

  • Input Power: 120/230/1/60
  • Duty Cycle: 175A/22.75V/30%
  • Output Range: 120V (20-140A) 230V (20-211A)
  • Dimensions: 15.5 x 10.75 x 22
  • Weight: 41 lbs

Documentation



Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 120/1/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) MIG 95A/18.8/60% 75A/17.8V/100%
Phase 1: Input Current at Max Rated Ouput #1 (Current) 20A
Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) 230/1/60
Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) MIG 175A/22.8V/30% 90A/18.6V/100%
Phase 1: Input Current at MAX Rated Output #2 (Current) 22.5A

Product Weights & Dimensions

Dimensions (H x W x D) 15.5 in x 10.75 in x 22 in (394 mm x 273 mm x 558 mm)
Net Weight 41 lbs (18.6 kg)

Machines

IEC Rating IP21S
Max Rating 211A
Output Range by Mode MIG: 20-211A
Number of Operators per Machine 1
Machines Communication Technology analog
Work Lead Connector Type Dinse
Welding Gun Cable Assembly Length Magnum PRO 100L
Work Cable Length 10 FT
Spool Gun Compatible (Duty) Light

Wire and TIG Feeders

UI type Meters
Wire Feeders Processes MIG
Flux Cored
Contact Tips Included Yes
Sample MIG Wire Included Yes

Basic Specification

Input Voltage 120/230
Input Current 120V: 15A, 230V: 15A
Input Hertz 60
Input Power 120/230/1/60
Input Phase 1
Mode Icon CV
Output Range 120V: 20-140A DC 230V: 20-211A DC Max. OCV : 76V
Polarity DC
Rated Output 120V: 95A/18.8/60% 230V: 175A/22.8V/30%

Application

Typical Application Construction
Automotive
General Fabrication
Maintenance & Repair
Repair Welding

Warranty

Warranty 3 Years

Custom Field

WARRANTY 3 Years
